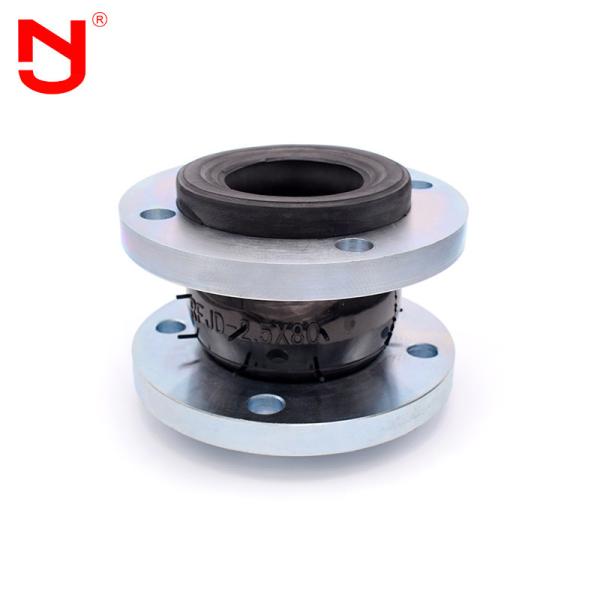

    EPDM Rubber Expansion Joint With Galvanized Carbon Steel Flanges

    Ask Lasest Price
    Brand Name : JINGNING
    Model Number : RFJD
    Certification : CE,ISO9001
    • Product Details
    • Company Profile

    EPDM Rubber Expansion Joint With Galvanized Carbon Steel Flanges

    EPDM Rubber Expansion Joint With Galvanized Carbon Steel Flanges



    GENERAL CHARACTRISTICS
    Nominal DiameterDN15-DN3000
    Working PressurePN6-PN25
    Working Temperature-20℃-140℃
    Working MediumWater,Oil,Acid,Alkali

    Part of technical data
    Main data of rubber expansion joint
    Nominal diameter(DN)
    Length
    Axial displacement(mm)
    Horizontal displacement
    Deflexion angle
    mm
    inch
    mm
    Extension
    Compression
    mm
    (a1+a2)°
    32
    1 1/4
    95
    6
    9
    9
    15°
    40
    1 1/2
    95
    6
    10
    9
    15°
    50
    2
    105
    7
    10
    10
    15°
    65
    2 1/2
    115
    7
    13
    11
    15°
    80
    3
    135
    8
    15
    12
    15°
    100
    4
    150
    10
    19
    13
    15°
    125
    5
    165
    12
    19
    13
    15°
    150
    6
    180
    12
    20
    14
    15°
    200
    8
    210
    16
    25
    22
    15°
    250
    10
    230
    16
    25
    22
    15°
    300
    12
    245
    16
    25
    22
    15°
    350
    14
    255
    16
    25
    22
    15°
    400
    16
    255
    16
    25
    22
    15°
    450
    18
    255
    16
    25
    22
    15°
    500
    20
    255
    16
    25
    22
    15°
    600
    24
    260
    16
    25
    22
    15°

    Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.
