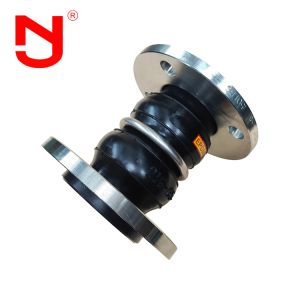

NBR Double Sphere Flexible Flange Ansi Flanged Rubber Expansion
Joint
A Double Sphere Flexible Flange is a piping component that combines
a double-sphere rubber expansion joint with flanged ends, designed
to provide enhanced flexibility, vibration absorption, and noise
reduction in piping systems while accommodating axial, lateral, and
angular movements, and facilitating easy installation and alignment
through its rotating flange design.
Performance characteristics of Double Sphere Flexible Flange
NBR double sphere rubber compensator offer ultra-high performance, reliability and longevity, thus
improving plant safety and the mechanical integrity of equipment.
Due to the insertion of specially designed products in rigid piping
systems, Joint expansion are able to:
1. Reduce mechanical noise
2. Compensate for eccentricity
3. Eliminate electrolysis between dissimilar metals
Technical data of Double Sphere Flexible Flange
Main data of Double Sphere Flexible Flange |
| Nominal diameter(DN) | Length | Axial displacement(mm) | Horizontal displacement | Deflexion angle |
| mm | inch | mm | Extension | Compression | mm | (a1+a2)° |
| 32 | 1 1/4 | 95 | 6 | 9 | 9 | 15° |
| 40 | 1 1/2 | 95 | 6 | 10 | 9 | 15° |
| 50 | 2 | 105 | 7 | 10 | 10 | 15° |
| 65 | 2 1/2 | 115 | 7 | 13 | 11 | 15° |
| 80 | 3 | 135 | 8 | 15 | 12 | 15° |
| 100 | 4 | 150 | 10 | 19 | 13 | 15° |
| 125 | 5 | 165 | 12 | 19 | 13 | 15° |
| 150 | 6 | 180 | 12 | 20 | 14 | 15° |
| 200 | 8 | 210 | 16 | 25 | 22 | 15° |
| 250 | 10 | 230 | 16 | 25 | 22 | 15° |
| 300 | 12 | 245 | 16 | 25 | 22 | 15° |
| 350 | 14 | 255 | 16 | 25 | 22 | 15° |
| 400 | 16 | 255 | 16 | 25 | 22 | 15° |
| 450 | 18 | 255 | 16 | 25 | 22 | 15° |
| 500 | 20 | 255 | 16 | 25 | 22 | 15° |
| 600 | 24 | 260 | 16 | 25 | 22 | 15° |
Note: 1. The special requirements of flanged expansion joint can be
customized according to user's drawing. Flange standard is GB /
t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN,
BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The
rubber ball of flanged expansion joint can be used as natural rubber, EPDM, chloroprene rubber, butyl
rubber, butadiene rubber, fluororubber, etc. when the flanged expansion joint above DN200 is used for suspension water supply, the pipeline must
have fixed support or fixed support, otherwise the flanged expansion joint shall be installed with anti falling device.
Double Sphere Flexible Flange details show
Double Sphere Flexible Flange production Flow
Do you know how is a Double Sphere Flexible Flange made? Let's see
with JINGNING.
It is very important to select the appropriate joint expansion, to understand the compatibility of the medium and the selected
material of the joint expansion, the range of full temperature, full pressure and full vacuum, the
amount of movement required, and the size between the pipe flanges.
With this information, JINGNING application engineers can help
determine the ideal joint expansion for any application.
Double Sphere Flexible Flange application
Double Sphere Flexible Flange are widely used in various pipeline systems, such as the connection
of joint expansion with pumps and valves, fire-fighting equipment and pipelines with
large vibration. Pipes with frequent changes of heat and cold. Double sphere rubber expansion joint is mainly used for remote water and sewage lifting and
transportation, water supply and cooling circulating water of
thermal power plant, pipeline transportation of metallurgical
industry, condensate water, chemical industry, cooling and dilution
of petrochemical industry, and flexible connection between long and
short distance pipelines in other industries. Because NBR double sphere rubber compensator has high wear resistance, joint expansion is also suitable for all industries of granular and powdery and gas
low temperature.
FAQ
Q1: What’s the package of Double Sphere Flexible Flange?
A1: The package is carton box and strong plywooden case.
Q2: What’ the MOQ of Double Sphere Flexible Flange?
A2: 1 pc. We could delivery any quantity according to your
requirements.
Q3: What’s the face to face length of Double Sphere Flexible
Flange?
A3: The face to face length can be L130, L152,L203... We also could
accept customized length according to your requirements.
Q4: What’s the material of flange ( retaining rings )?
A4: The material of flange can be carbon steel, stainless steel and
ductile iron.
