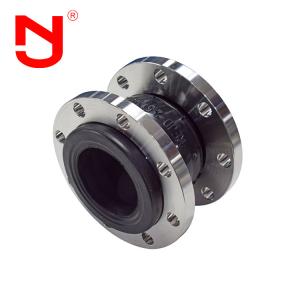

Flexible joint pipe is also customarily called compensator, or expansion joint. It
consists of bellows (a kind of elastic element) which constitutes
its working main body and accessories such as end pipe, bracket,
flange, conduit and so on. Flexible joint pipe is to compensate for the additional stress caused by temperature
difference and mechanical vibration, and set up in the container
shell or pipeline on a flexible structure. Using the effective
expansion and deformation of its working body bellows to absorb the
pipeline, conduit, container, etc. by thermal expansion and
contraction and other reasons for the size change, or to compensate
for the pipeline, conduit, container, etc. axial, lateral and
angular displacement.
Performance characteristics
1. Flexibility: Accommodates axial, lateral, and angular movements.
2. Durability: Reinforced flexible joint pipe provides long-lasting performance.
3. Corrosion Resistance: Resists aggressive environments and
chemicals.
4. Noise & Vibration Reduction: Dampens vibrations and shock waves.
5. Ease of Installation & Maintenance: Compact design and standard
flange connections facilitate installation and upkeep.
Product Specification
| Size | Length | Allowable Movements in Operation |
| mm | inch | mm | Axial Compression mm | Axial Extension
mm | Transverse Movement mm | Angular Deflection mm |
|
| 25 | 1 | 130/152 | 20 | 12 | 14 | 15° |
| 32 | 1 1/4 | 95/130/152 | 20 | 12 | 14 | 15° |
| 40 | 1 1/2 | 95/130/152 | 20 | 12 | 14 | 15° |
| 50 | 2 | 105/130/152 | 20 | 12 | 14 | 15° |
| 65 | 2 1/2 | 115/130/152 | 20 | 12 | 14 | 15° |
| 80 | 3 | 130/135/152 | 20 | 12 | 14 | 15° |
| 100 | 4 | 130/152 | 20 | 12 | 14 | 15° |
| 125 | 5 | 130/152/165 | 20 | 12 | 14 | 15° |
| 150 | 6 | 130/152/185 | 20 | 12 | 14 | 15° |
| 200 | 8 | 130/152/210 | 20 | 12 | 14 | 15° |
| 250 | 10 | 130/203/230 | 20 | 12 | 14 | 15° |
| 300 | 12 | 130/203/245 | 25 | 16 | 22 | 15° |
| 350 | 14 | 200/255 | 25 | 16 | 22 | 15° |
| 400 | 16 | 200/255 | 25 | 16 | 22 | 15° |
| 450 | 18 | 200/255 | 25 | 16 | 22 | 15° |
| 500 | 20 | 200/255 | 25 | 16 | 22 | 15° |
| 600 | 24 | 260 | 25 | 16 | 22 | 15° |
| 700 | 28 | 260 | 25 | 16 | 22 | 15° |
| 800 | 32 | 260 | 25 | 16 | 22 | 15° |
| 900 | 36 | 260 | 25 | 16 | 22 | 15° |
| 1000 | 40 | 260/300 | 25 | 16 | 24 | 15° |
| 1100 | 44 | 300 | 25 | 16 | 24 | 15° |
| 1200 | 48 | 300 | 25 | 16 | 24 | 15° |
Note: If the medium is oil, acidic or alkaline substances, and
there are special requirements for the working temperature, you can
customize it by sending a letter or drawing. Please specify when
ordering |
Product Details
Production Flow
1.Raw material Top level CR/EPDM/NBR rubber raw materials, No recycled rubber | 2.Plasticating and mixing Special Formulation for better Bending with Nylon,For Better
Strength,Sealing | 3.Workblanks wraping Cooper plated steel wire reinforcement prevent pull off |
4.Vulcanizing Automatic vulcanization machine ensure vulcanization time and
pressure | 5.Inspecting
100% strict inspection is to be responsible for consumers | 6. Packaging
Protective Packaging for No
Rust and Breakage |
Application
Flexible joint pipe are widely used in various fields, including construction,
chemical industry, shipbuilding, tap water, gas, chemical
pipelines, petroleum pipelines, food pipelines, air conditioning
pipelines, and sewage treatment.
Our Services
1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure,
packaging)
7.Long warranty period
8.Suitable packaging for transportation
Our Customer
Certificate
FAQ
Q1:What’s the material of flexible joint pipe?
A1:The material can be EPDM,NBR,CR,SBR..It depends on the working
condition.
Q2:What’s the warranty period of flexible joint pipe?
A2:We provide 18 months’ warranty.
Q3:What’s the working temperature of flexible joint pipe?
A3:The working temperature is -20℃~100℃.
Q4:What’s the package?
A4:The package is carton box and strong plywooden case.
